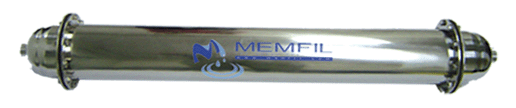

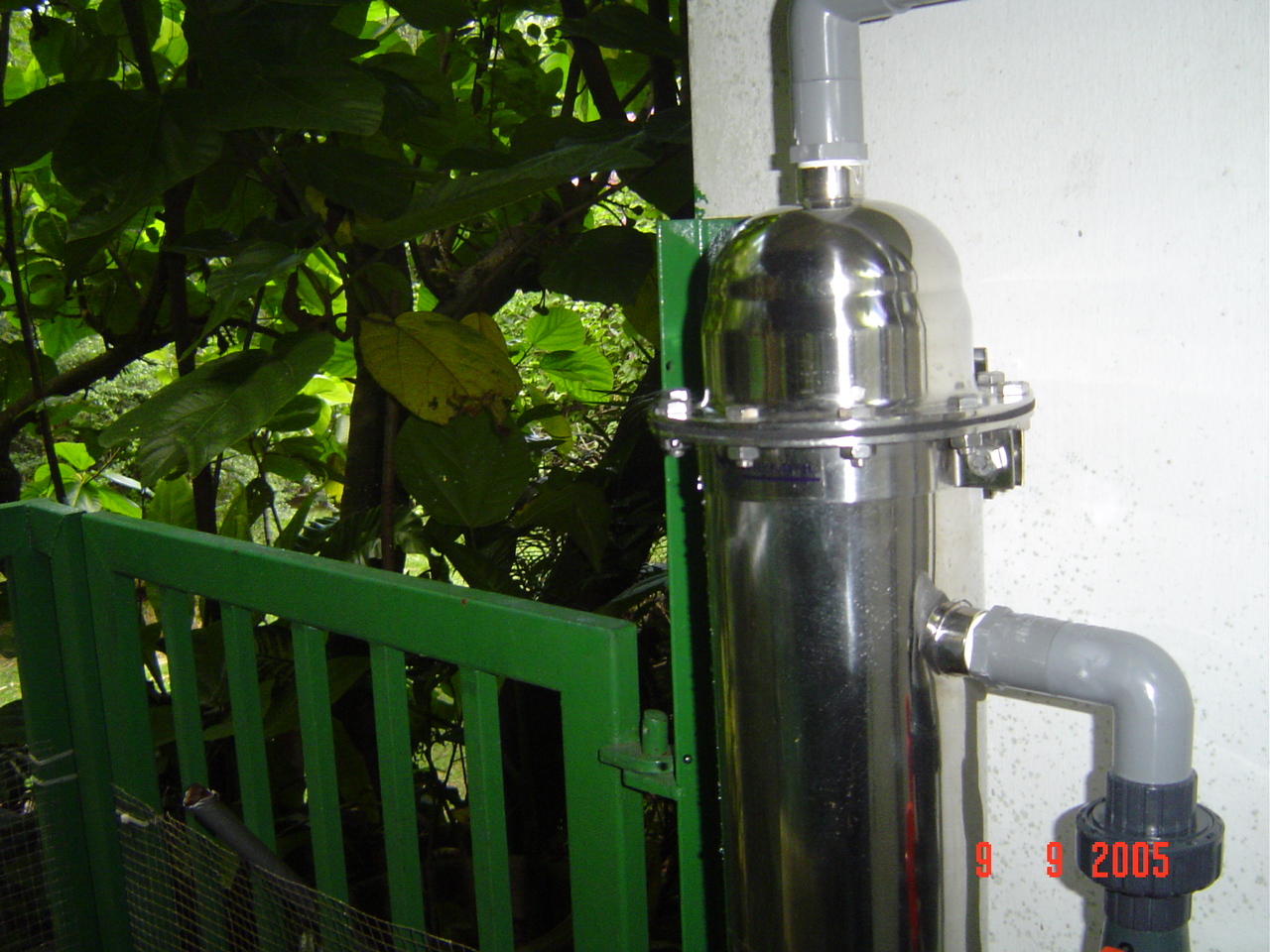

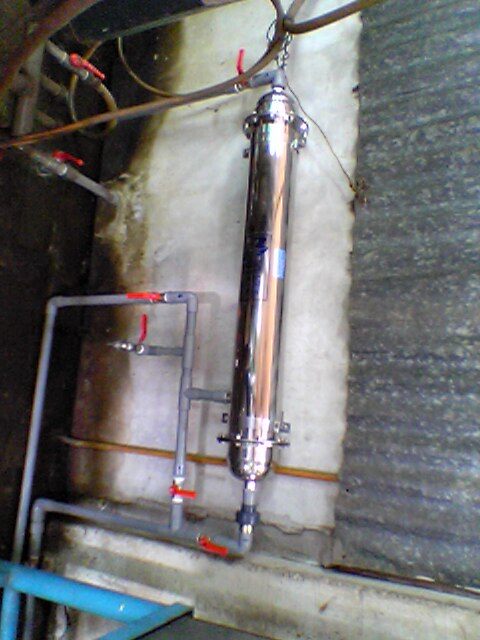

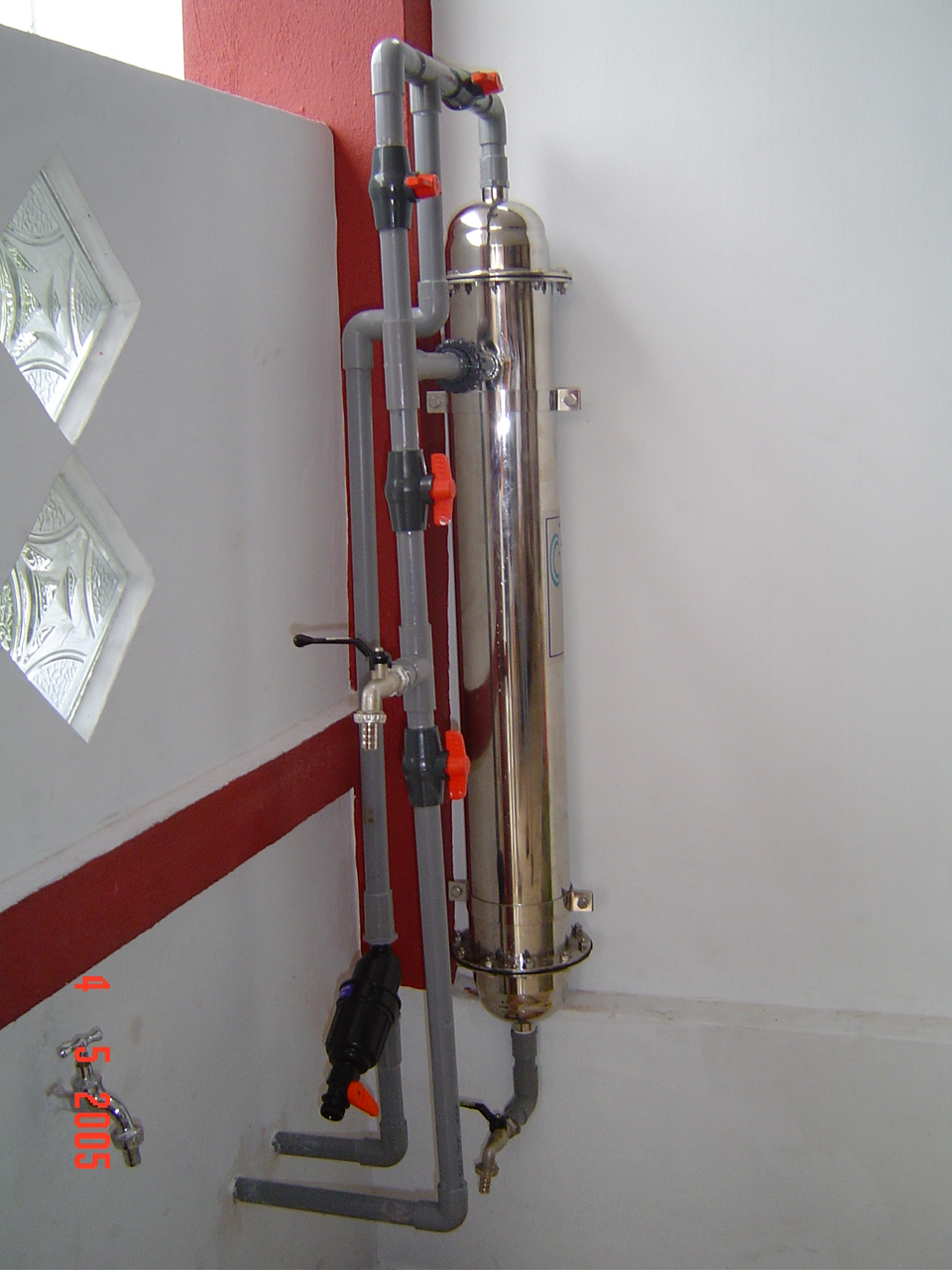

DSS-540S have better filtrate
quality compared to conventional
pretreatment
Item no : DSS003
Long description
: DSS-540S have better
filtrate quality compared to conventional
pretreatment, exhibiting 100%
removal of colloidal material
Short description
: DSS-540S
Weight :
5.000
Specification
:
Flow rate : 3000 L/h
Dimension (Dia x
L) mm : 160 x 1050
Operating
pressure : 1.5 - 3.5
bar
Operation
temperature : 40 Celcius
pH range :
3.0 - 12.0
Filtrate
turbidity : 0.1
NTU
MWCO : 80 000
Sheel material : Stainless
Steel
Removal of
suspended solid :
99.99%
Removal of
bacteria and virus :
99.99%
Removal of TOC :
0 - 50%
Max inlet
turbidity (NTU) :
20 NTU
Operation method
: Full filtrate

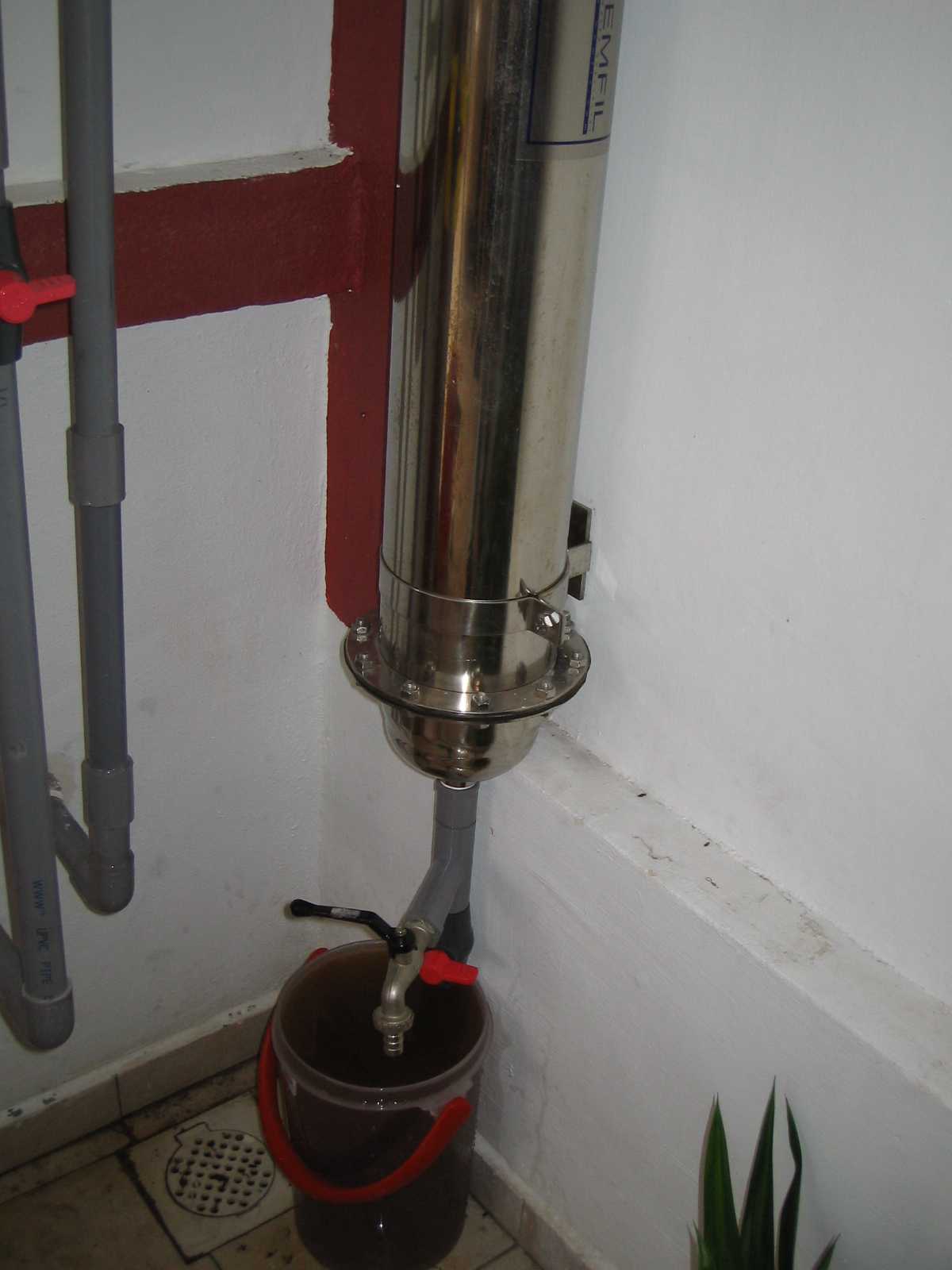

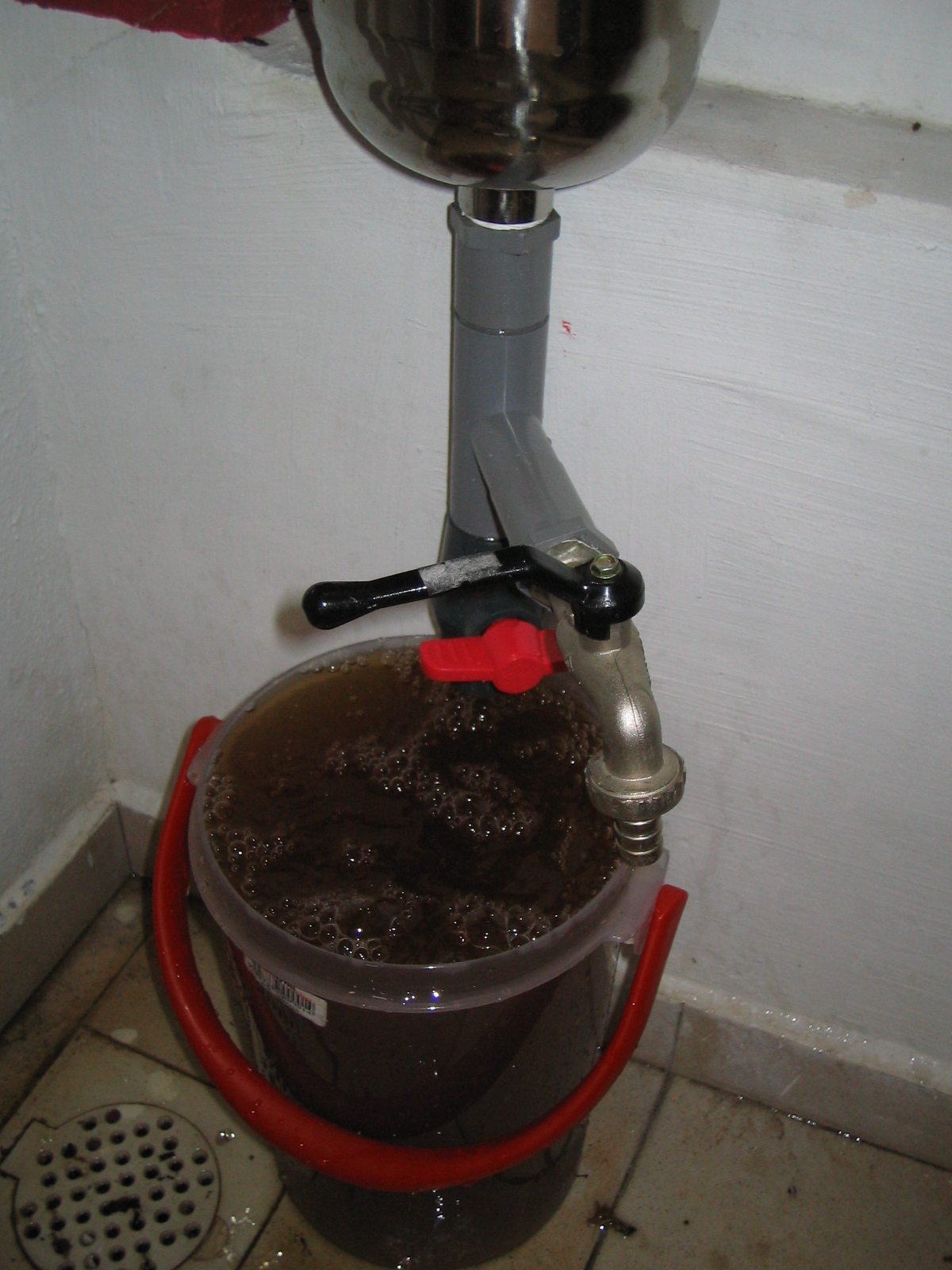

Flushing time :
30 sec.
Installation
guide
Download |
|
